Woodpecker Air Polisher AP-H

Features

• Lightweight design for reduced grip fatigue and extended comfort during use.

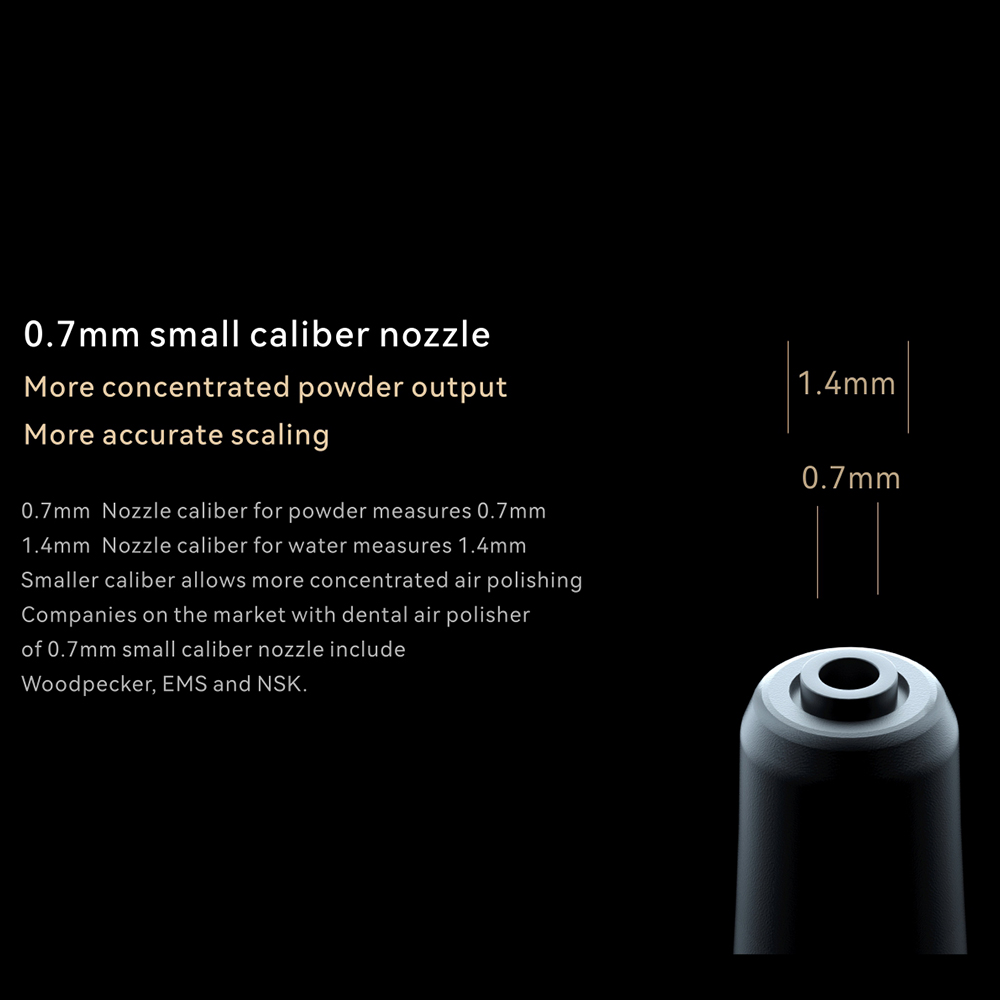

• Small-caliber nozzle ensures concentrated powder output and precise scaling for effective supragingival polishing.

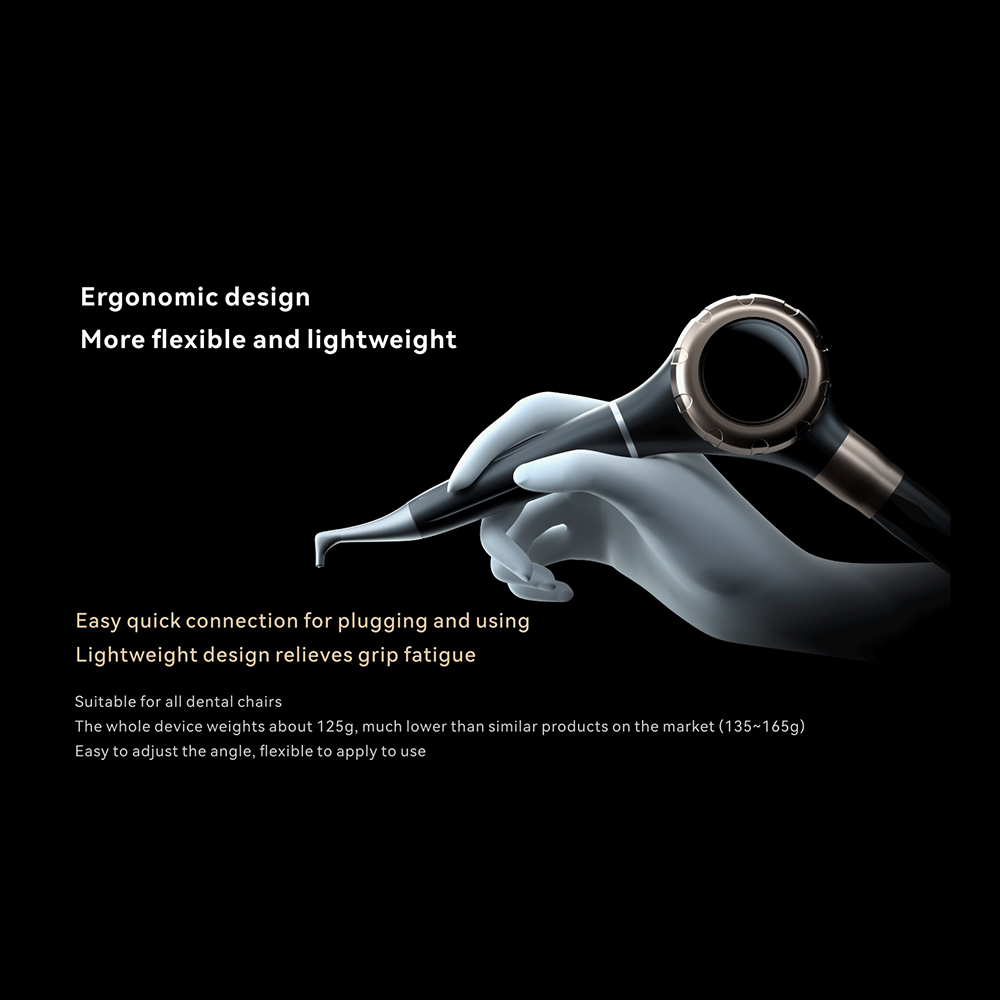

• Ergonomic handpiece for enhanced flexibility and maneuverability.

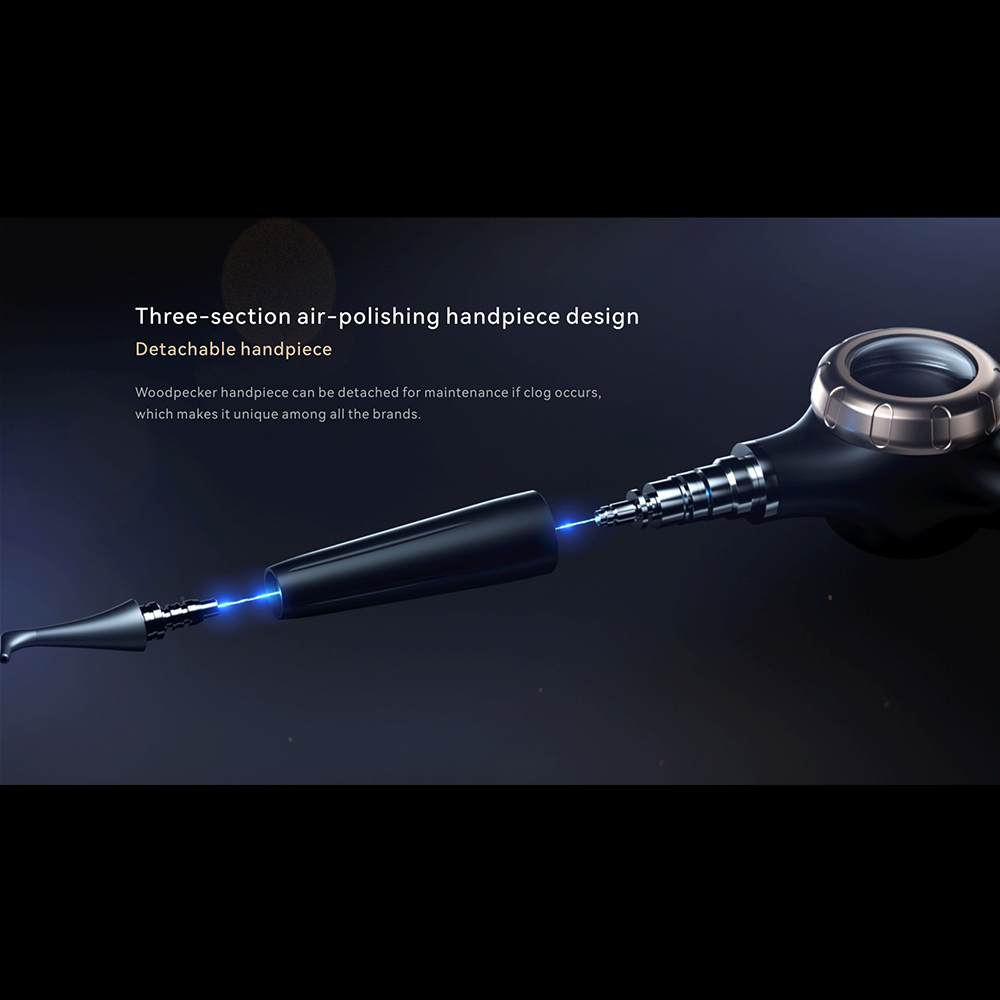

• Detachable handpiece allows for easy maintenance and quick clog resolution.
• Transparent lateral powder container for better visibility of remaining powder.

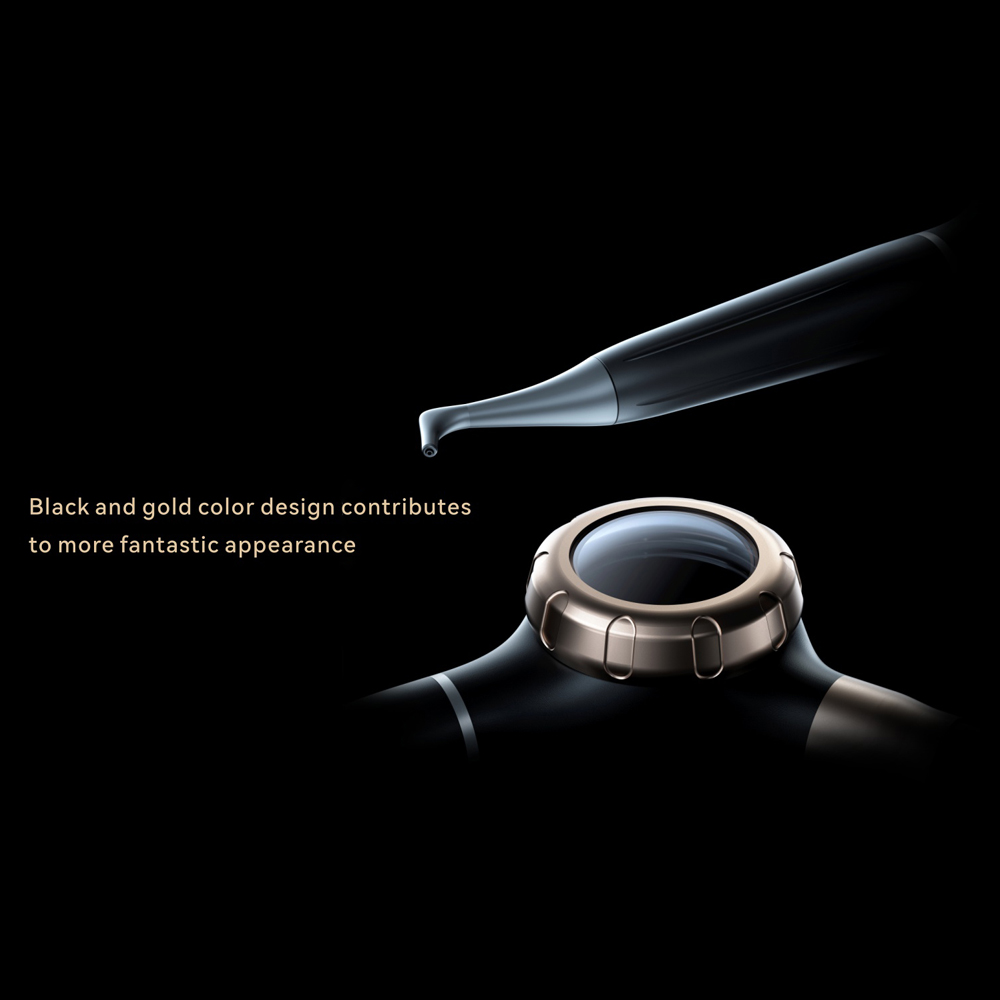

• Sleek black and gold color design enhances the aesthetic appeal of the setup.

Description

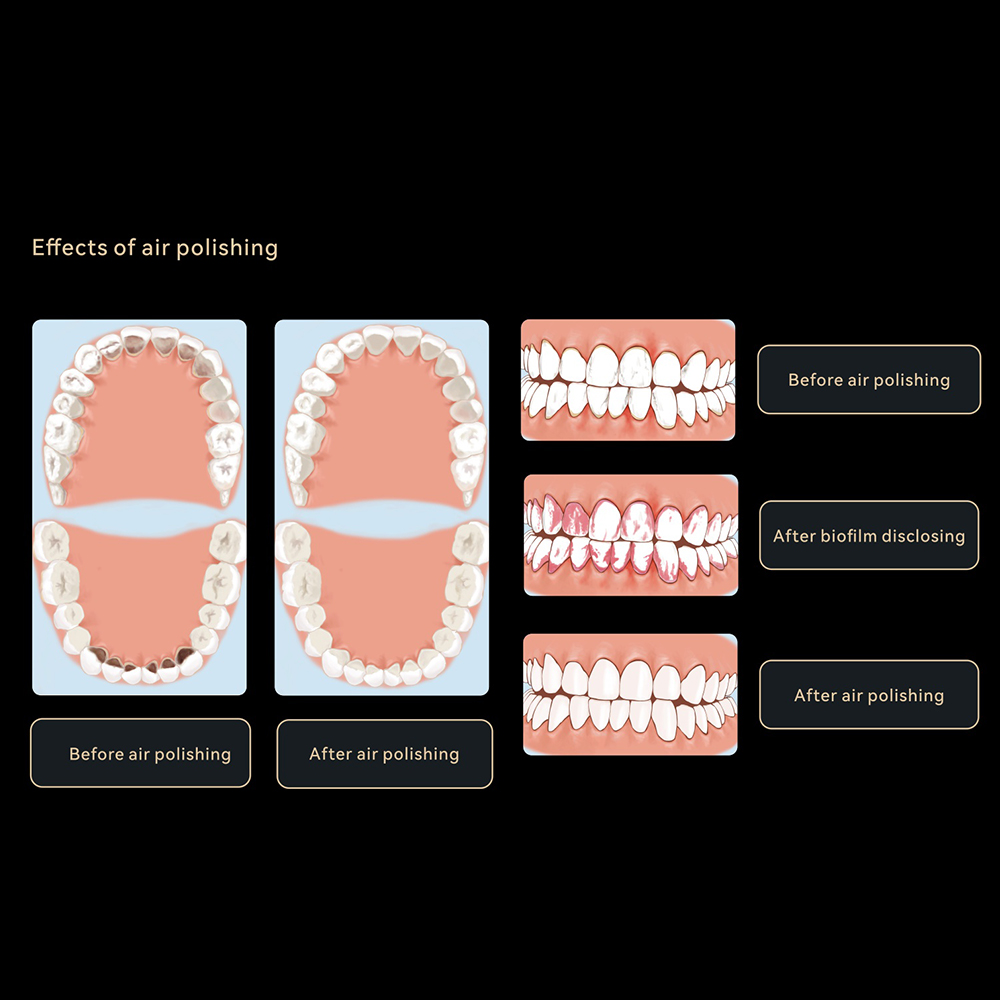

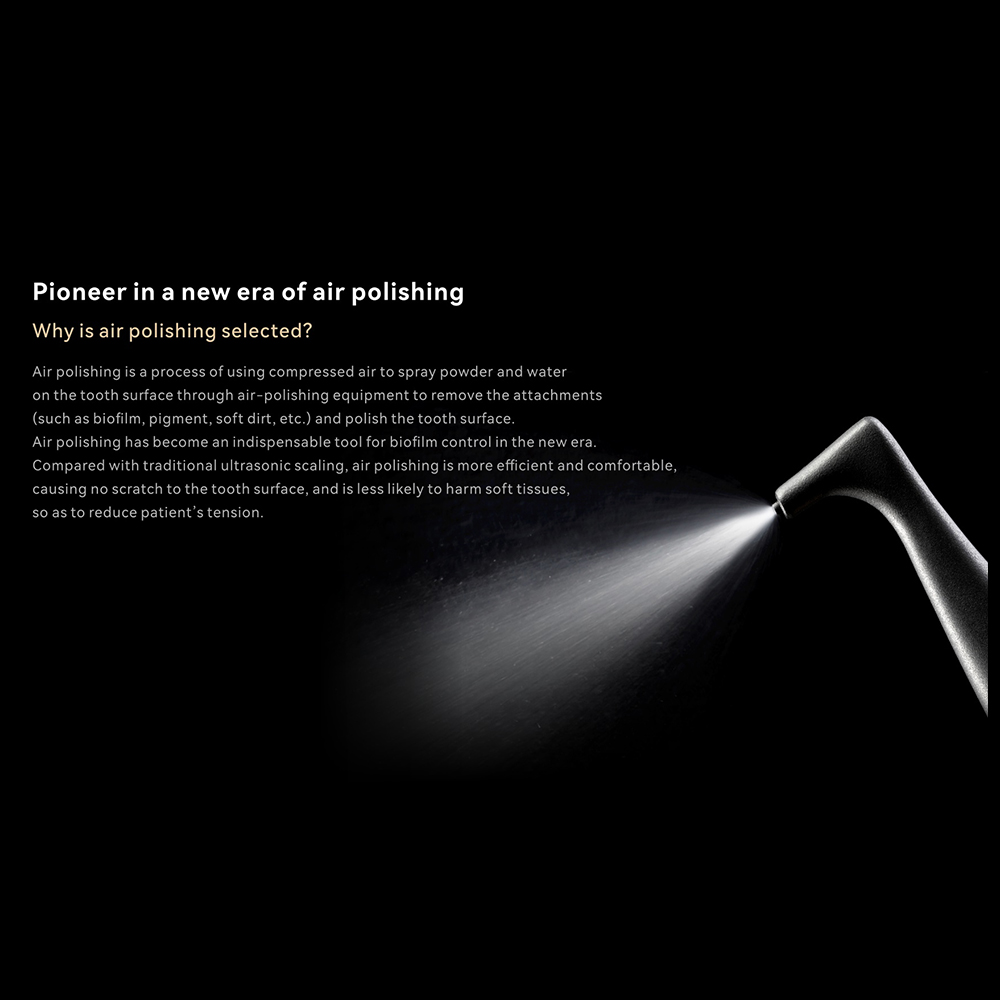

Woodpecker Air Polisher AP-H is an advanced air-polishing tool designed for efficient and comfortable biofilm control. Using compressed air, the polisher sprays a combination of powder and water to effectively remove biofilm, pigments, and soft debris from tooth surfaces without scratching or harming soft tissues. Unlike traditional ultrasonic scaling, this method is gentler and reduces patient discomfort. It features a 0.7mm small-caliber nozzle, allowing for concentrated powder output and more accurate scaling. The handpiece has a three-section design with a detachable feature for easy maintenance in case of clogs. The transparent powder container and ergonomic, lightweight design ensure ease of use, while the device’s compatibility with all dental chairs and its sleek black and gold design add to its appeal. Weighing just 125g, it offers flexibility and convenience for professionals.

Key Specifications

• Input water pressure: 0.7bar to 2.2bar (70-220kPa)
• Input air pressure: 3.5bar to 4.5bar (350-450kPa)
• Working mode: continuous operation, Intermittent operation
• Weight: About 0.150kg
• Connector: Meets the requirements of YY / T 0514
• Usage: Supragingival air polishing

Operation environment:

• Environment temperature: ＋ 10℃～ +40℃
• Relative humidity: 30% ～ 75%
• Atmospheric pressure：50kPa ～ 106kPa

Packaging

Packaging List:

• 1 x Powder storage chamber (Main Unit)
• 1 x Handpiece (AP-1 Plus)
• 1 x Needle (Long)
• 1 x Needle (Short)
• 1 x Instruction manual
• 1 x Tip card
• 1 x Packing List
• 1 x Connector

O-Ring Set

• 2 x O-Ring (Φ4.5xΦ1)
• 4 x O-Ring (Φ3xΦ1)
• 2 x Silicone gasket
• 1 x Sealing gasket
• 1 x Butt joint sleeve

Direction to Use

Installation and connection:

• The connection between Dental Air Polisher and handpiece pipeline.
• After drying the Dental Air Polisher interface and the handpiece pipeline-interface with an air gun, directly insert the Dental Air Polisher interface into the handpiece pipeline and then tighten the nut of the pipeline.

Powder Loading:

• After connecting the Dental Air Polisher, unscrew the powder storage chamber cover of the gun, put the powder into the chamber, clear the powder at the thread position of the powder storage chamber cover, and tighten the cover.

Supragingival air-polishing:

• After loading the powder, please spray in the container outside the oral cavity for 1~3 seconds in advance to ensure that the air and water can be sprayed evenly before treating the patient.
• Generally, the handpiece is held in a pen-holding position.
• When using a Dental Air Polisher for normal air polishing, it is recommended that the spray-head air outlet and the tooth surface be kept at a distance of 3-5mm, and the air polishing direction is recommended to be at an angle of 30-60° with the tooth surface.

Note:

• It is forbidden to pull out the tail plug when the handpiece is working.
• The only subgingival powder can be used for subgingival air polishing.

Instructions for main components:

• Handpiece: Working part, the spray head of which can be pulled out by rotation. In case of blockage, the user can rotate the spray head to loosen and pull out it, and then use the needle to negotiate. The spray head can be sterilized at high temperatures.

Powder storage chamber:

• Working part, used for powder storage.
• Nozzle: Disposable accessory.

Maintenance:

Powder clearing

• Open the powder storage chamber cover and clear the remaining powder on it.
• Blow off the powder remaining in the powder storage chamber with air.
• Wipe off the powder residues on the surface of the Dental Air Polisher with alcohol cotton or a dry towel.
