Dentsply X-Smart Pro Plus Endomotor with Integrated Apex Locator

Features

• Integrated apex locator enables real time working length determination
• Supports both rotary and reciprocating endodontic motions
• Dynamic Accuracy technology improves apical measurement precision
• Patented brushless motor ensures stable torque and speed control

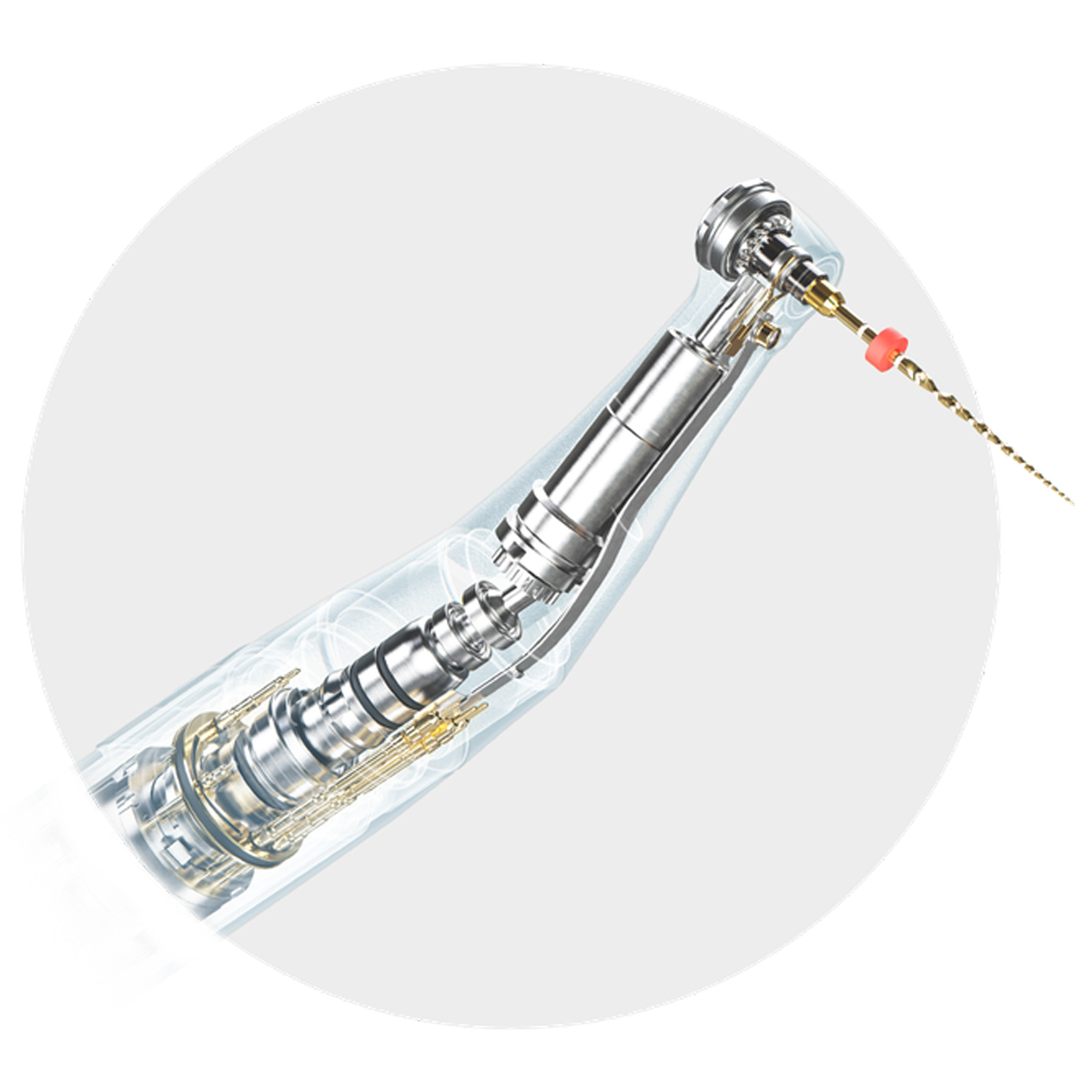

• Mini contra angle features integrated 10 lumen LED illumination
• Wi Fi upgrade capability allows future firmware enhancements

Description

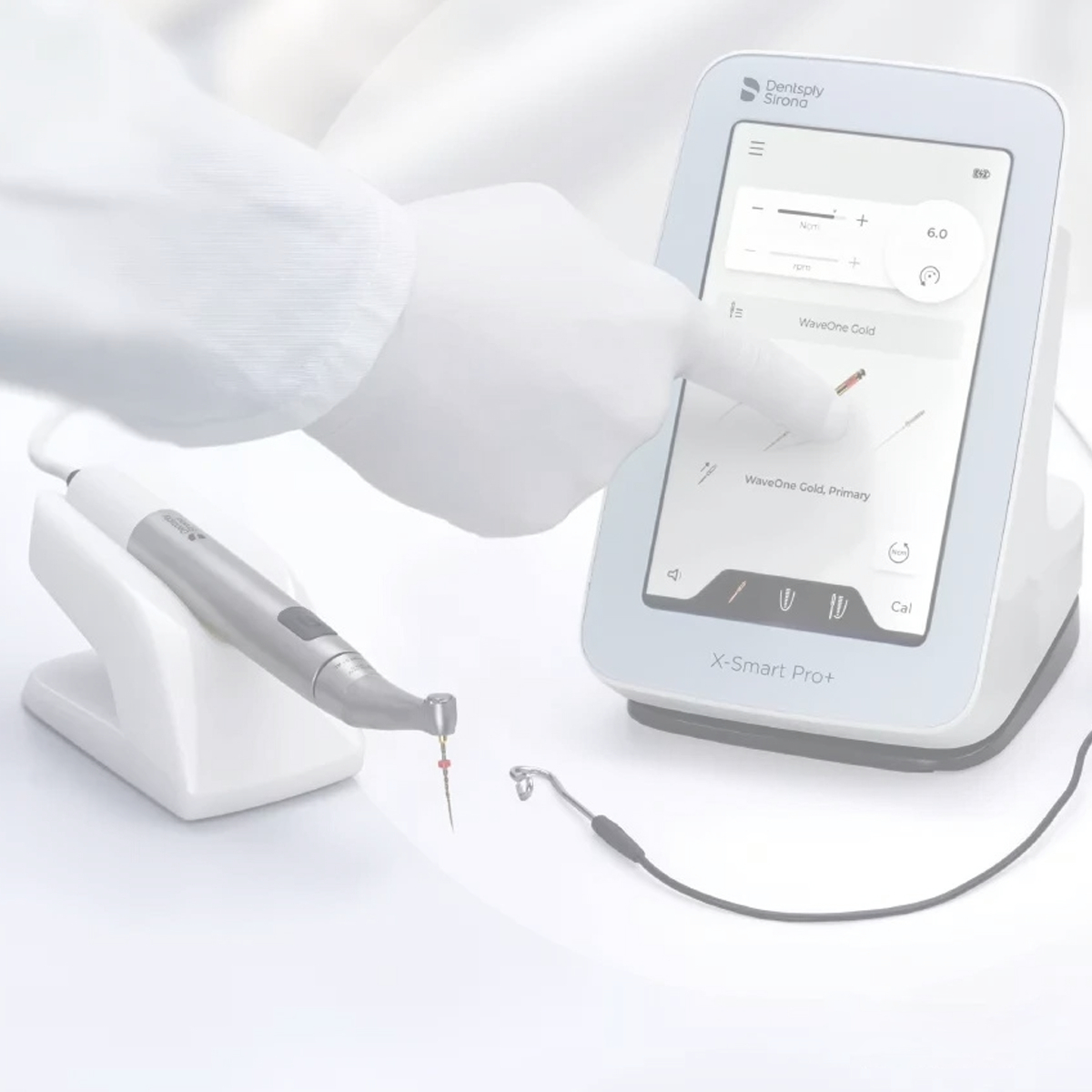

Dentsply X-Smart Pro Plus Endomotor with Integrated Apex Locator is an advanced endodontic motor engineered for precise canal shaping, apex localization, and efficient workflow integration. Designed for both rotary and reciprocating instrumentation, it supports multiple leading endodontic file systems. Equipped with Dynamic Accuracy technology, the integrated apex locator enables real-time working length determination while reducing the risk of over instrumentation. The patented brushless motor system provides stable torque and speed control for enhanced procedural precision across varied canal anatomies. Its intuitive 7-inch touchscreen interface allows quick access to preset programs and customizable sequences. The lightweight mini contra-angle with integrated 10-lumen LED improves visibility during treatment. With Wi-Fi firmware upgrades, lithium-ion battery operation, and autoclavable components, the X-Smart Pro Plus offers a reliable and modern endodontic solution for advanced clinical practice.

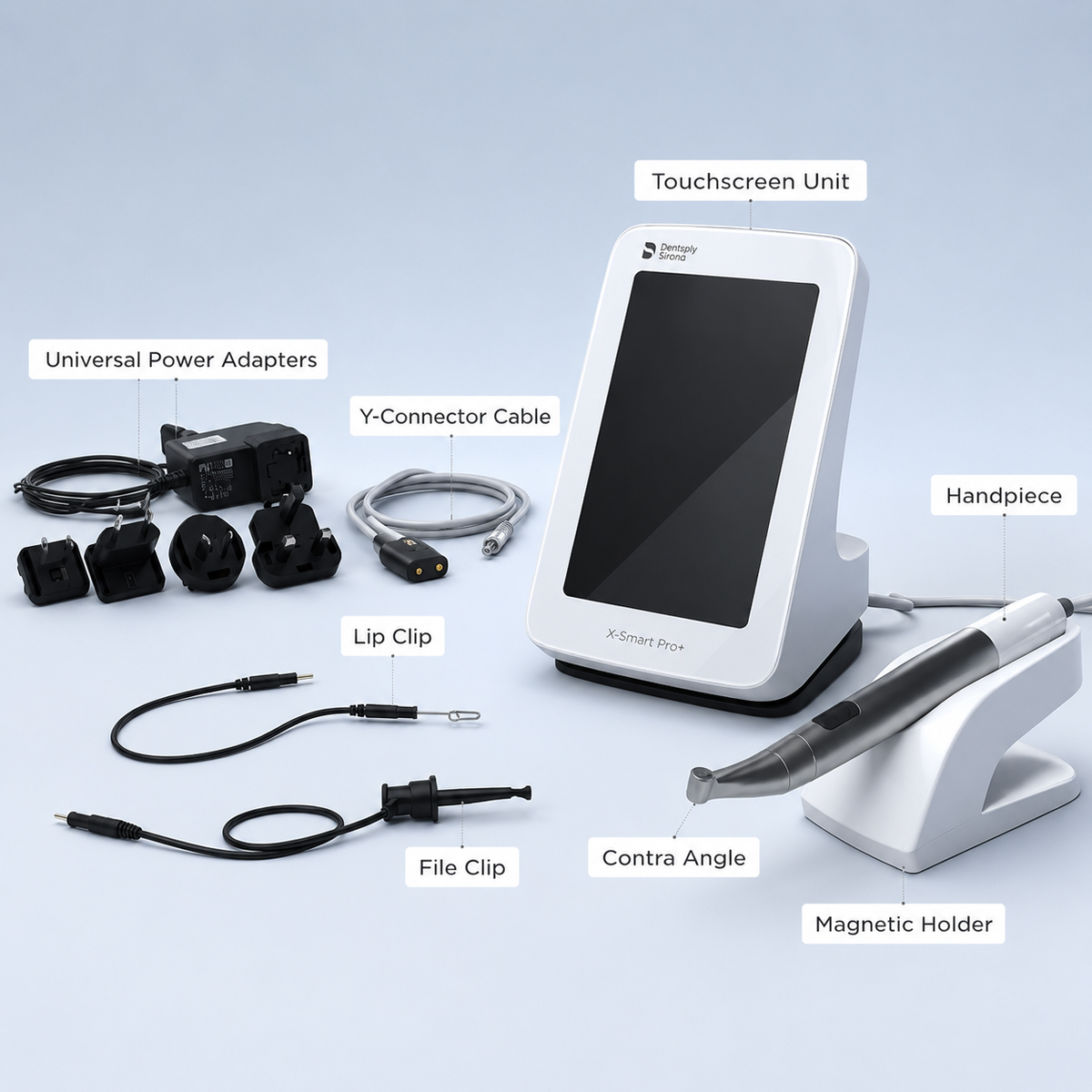

Packaging

Dentsply X-Smart Pro Plus Endomotor with Integrated Apex Locator

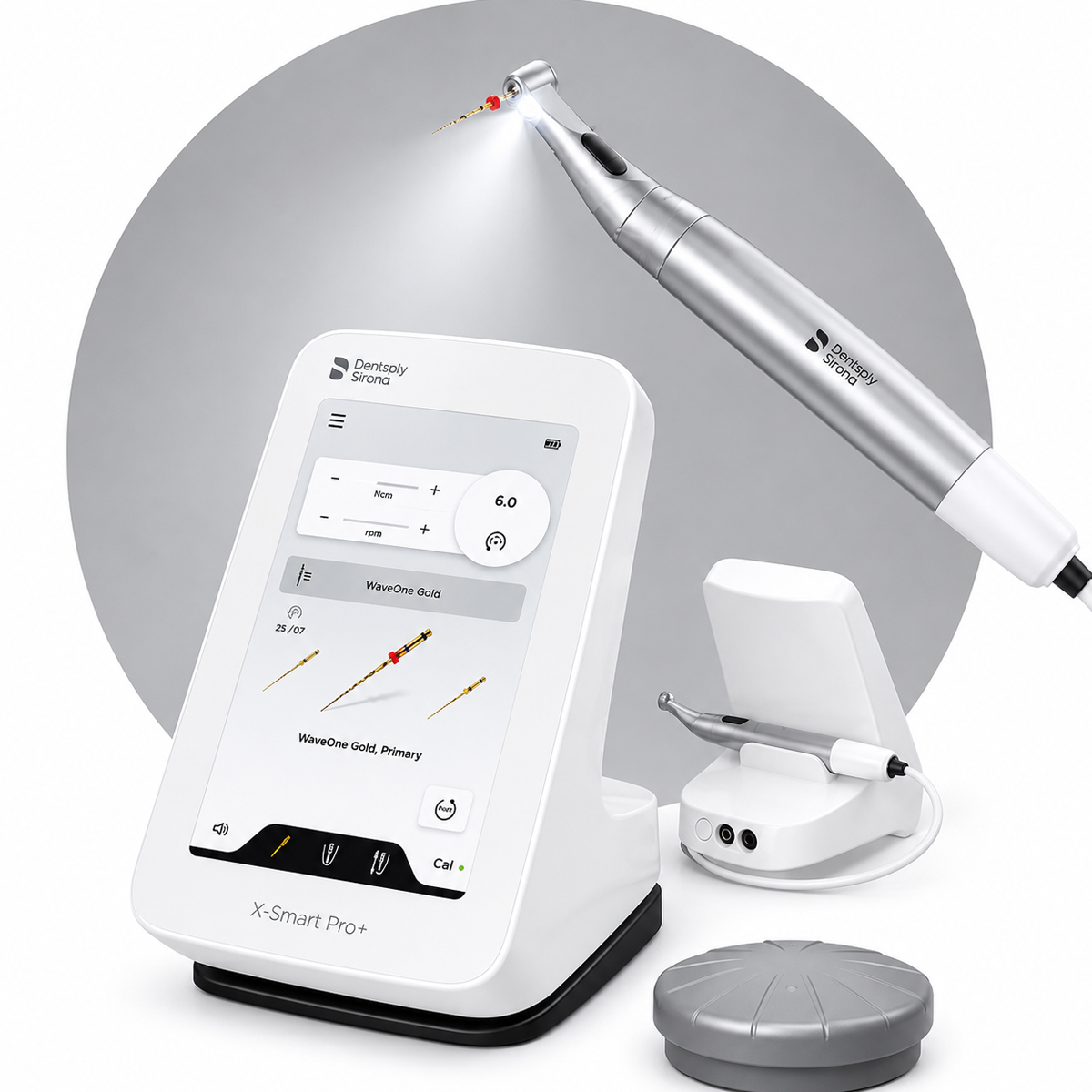

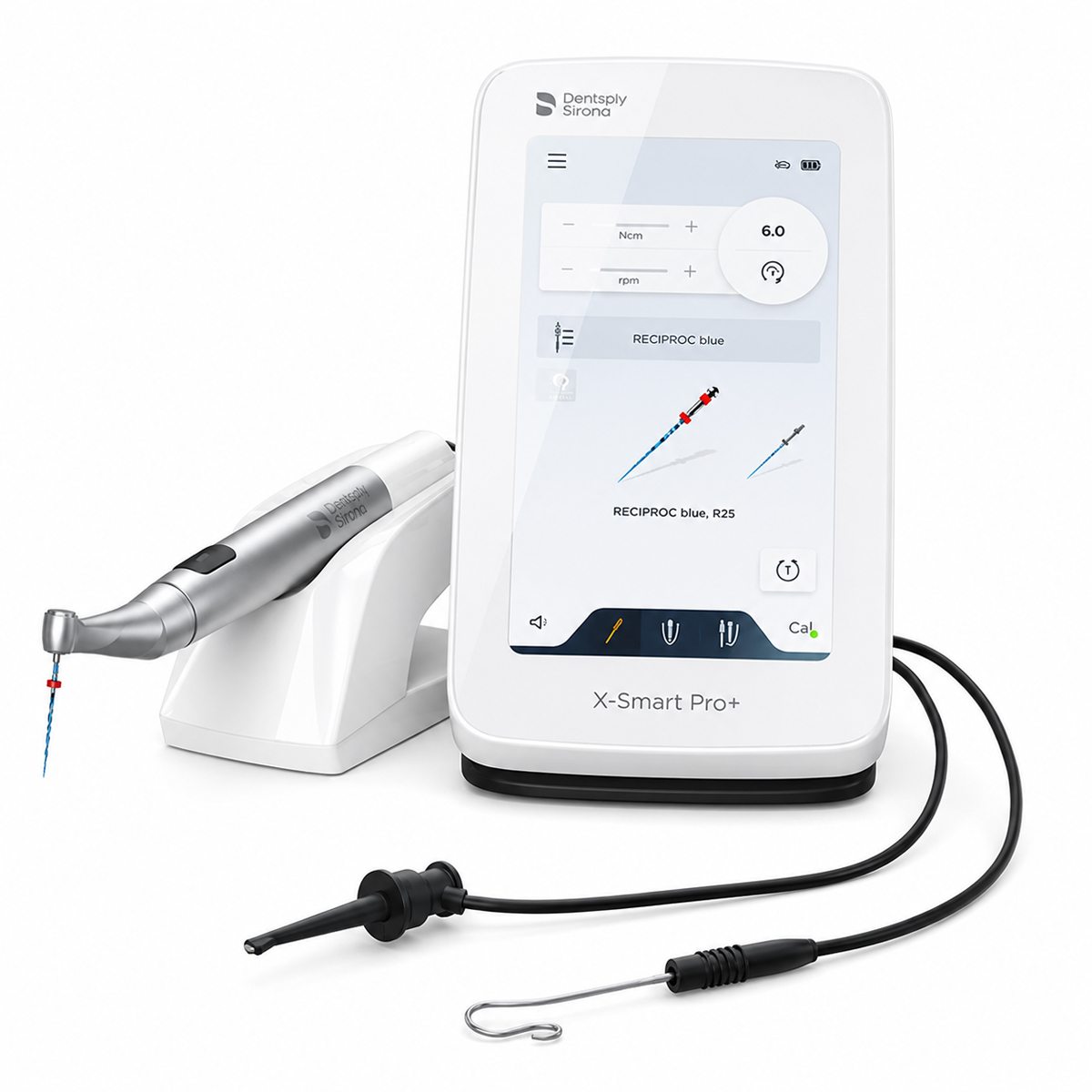

• 1 x X-Smart Pro+ Endo Motor with Integrated Apex Locator
• 1 x Mini Contra-Angle with Integrated LED and 360° Adjustable Position
• 1 x Magnetic Handpiece Holder
• 1 x Accessories Box (Charger with universal power adapters)
• 1 x Lip Clip
• 1 x File Clip
• 1 x Y-Connector Cable

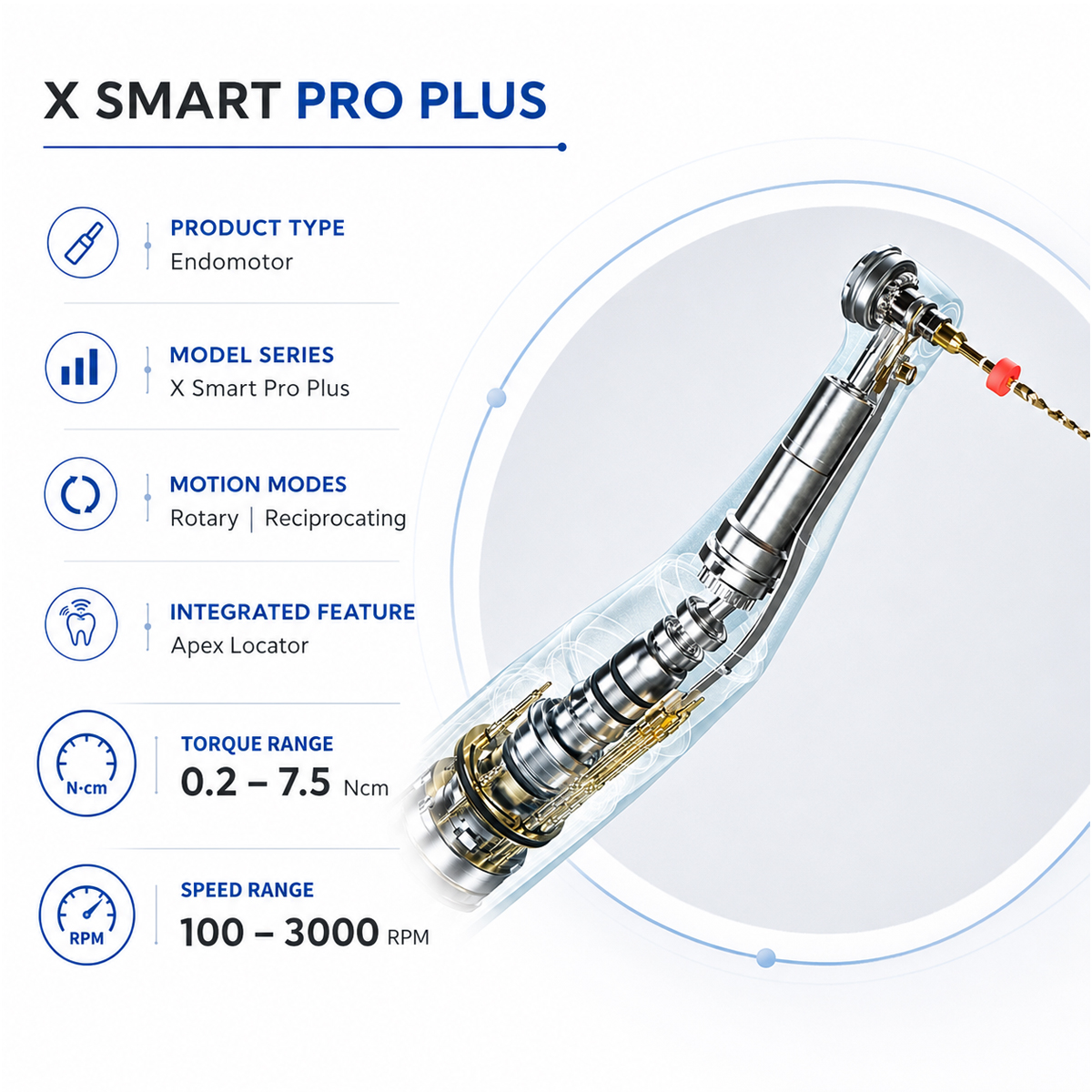

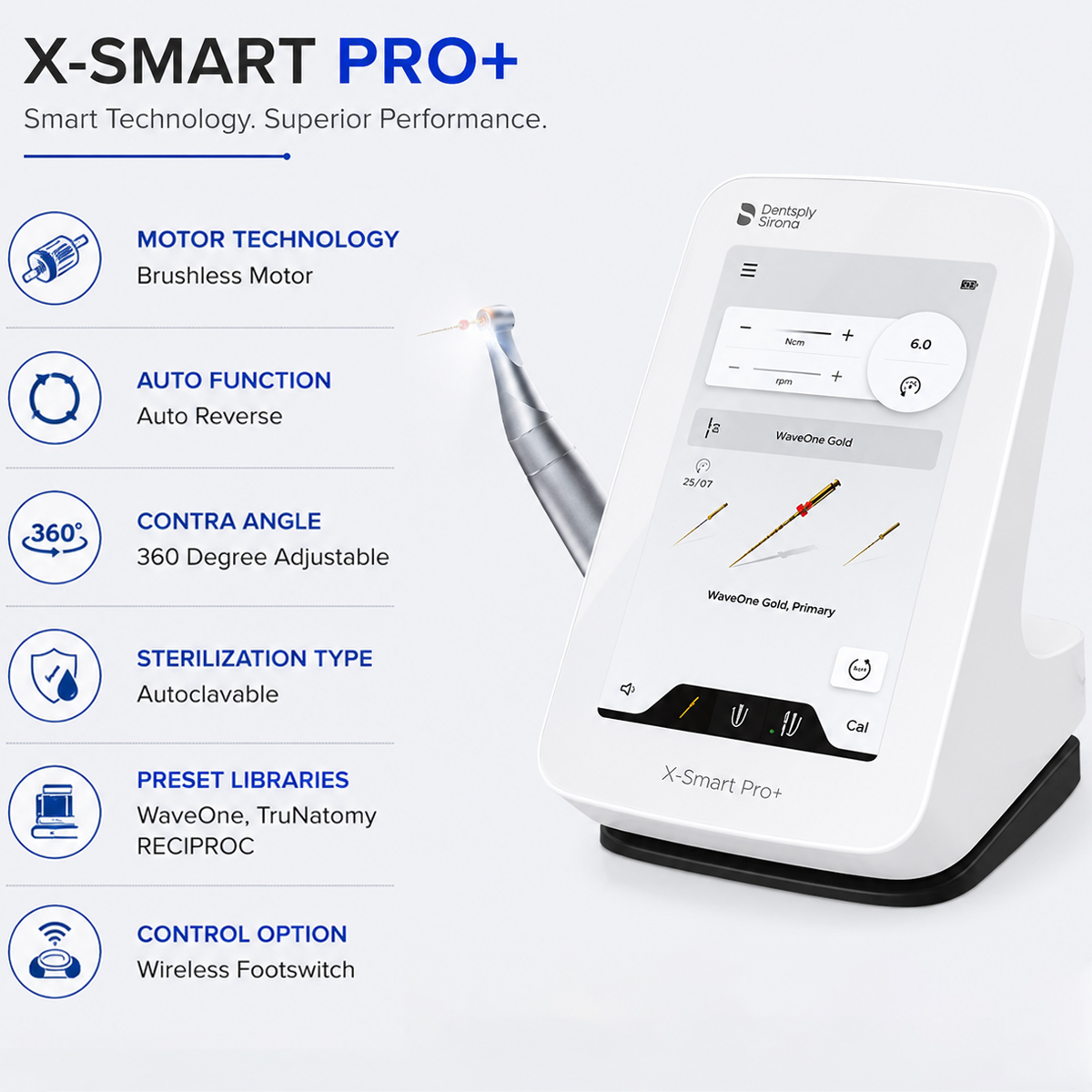

Key Specifications

• Product Type: Endomotor
• Model Series: X Smart Pro Plus
• Motion Modes: Rotary Reciprocating
• Integrated Feature: Apex Locator
• Torque Range: 0.2–7.5 Ncm
• Speed Range: 100–3000 RPM
• Motor Technology: Brushless Motor

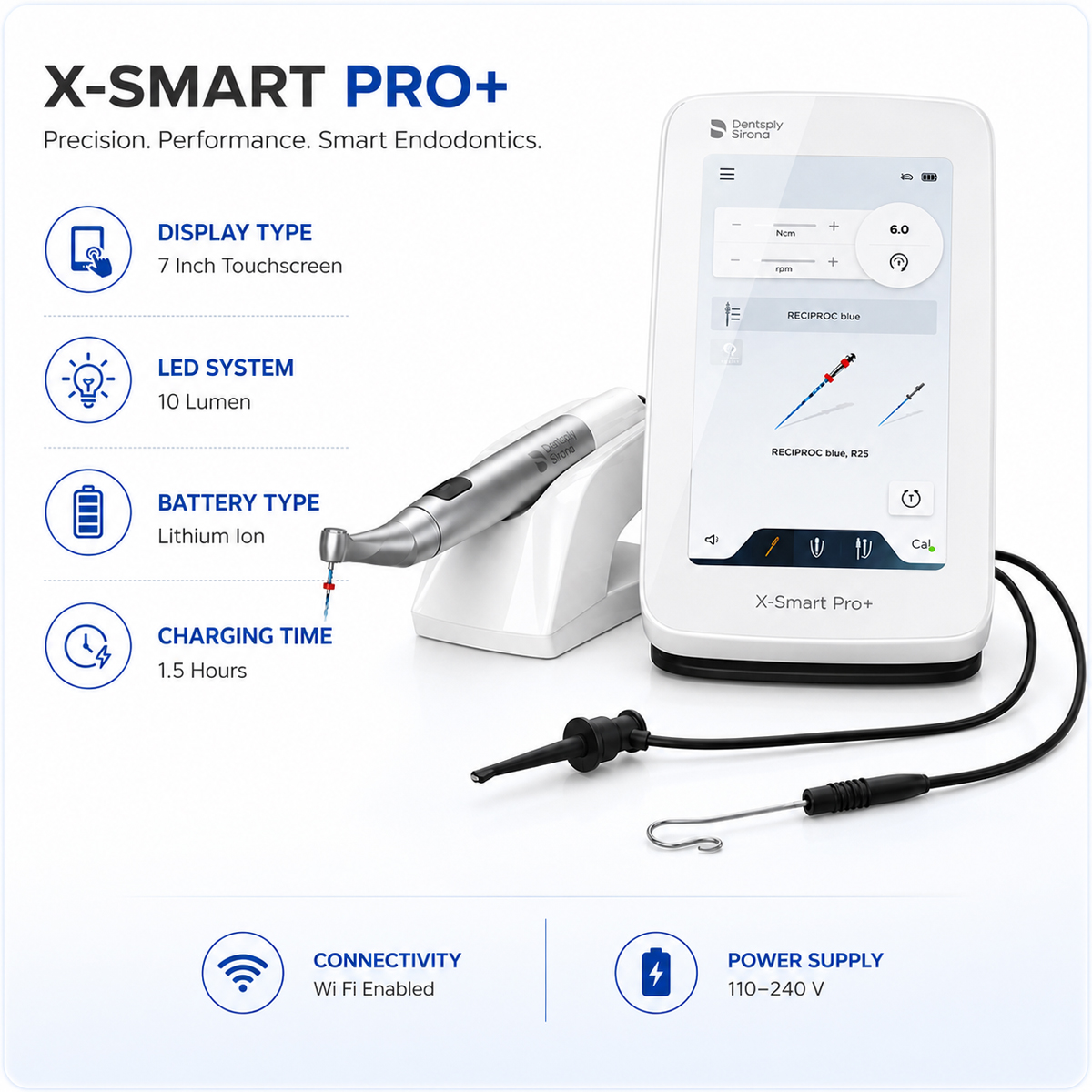

• Display Type: 7 Inch Touchscreen
• LED System: 10 Lumen
• Battery Type: Lithium Ion
• Charging Time: 1.5 Hours
• Connectivity: Wi Fi Enabled
• Power Supply: 110–240 V
• Auto Function: Auto Reverse
• Contra Angle: 360 Degree Adjustable
• Sterilization Type: Autoclavable
• Preset Libraries: WaveOne TruNatomy RECIPROC
• Control Option: Wireless Footswitch

Direction to Use

Preparation

• Charge the device fully before clinical use
• Select the appropriate endodontic file system from the preset library
• Attach the contra angle and sterilized handpiece components securely

Adjustment

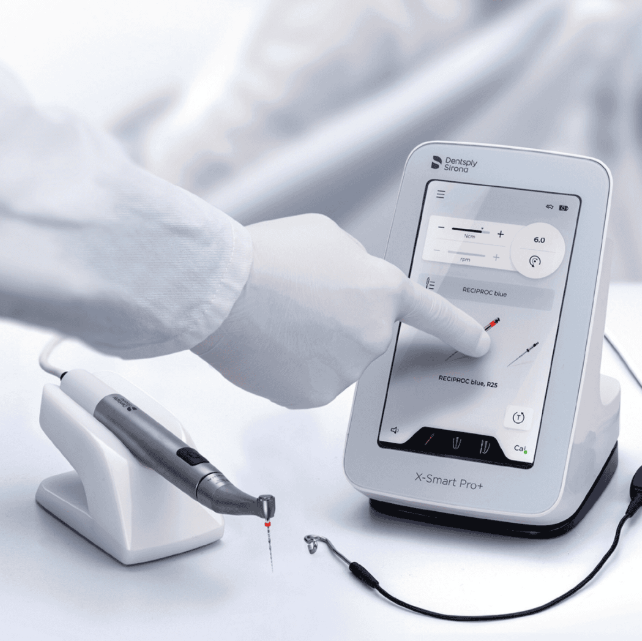

• Set the desired torque speed and motion parameters on the touchscreen
• Calibrate the motor using the CAL function for precise torque accuracy
• Connect the apex locator clip and confirm signal stability

Operation

• Insert the selected file into the contra angle handpiece
• Begin canal shaping using rotary or reciprocating mode as required

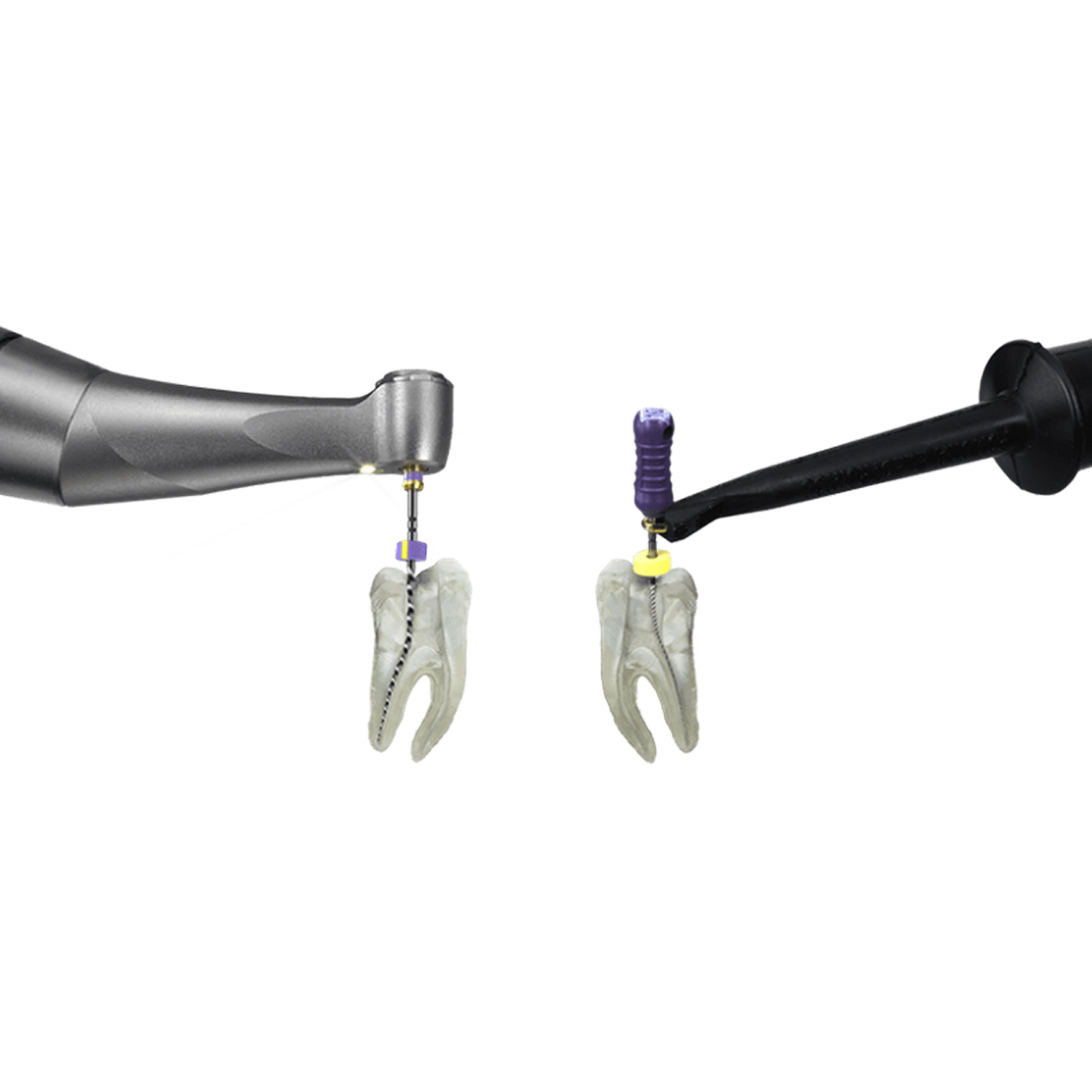

• Monitor working length continuously using the integrated apex locator

Post Use Care

• Remove and sterilize the contra angle and handpiece sheath after use
• Clean the motor surface using approved disinfectant wipes
• Store the device in a clean dry environment after charging
