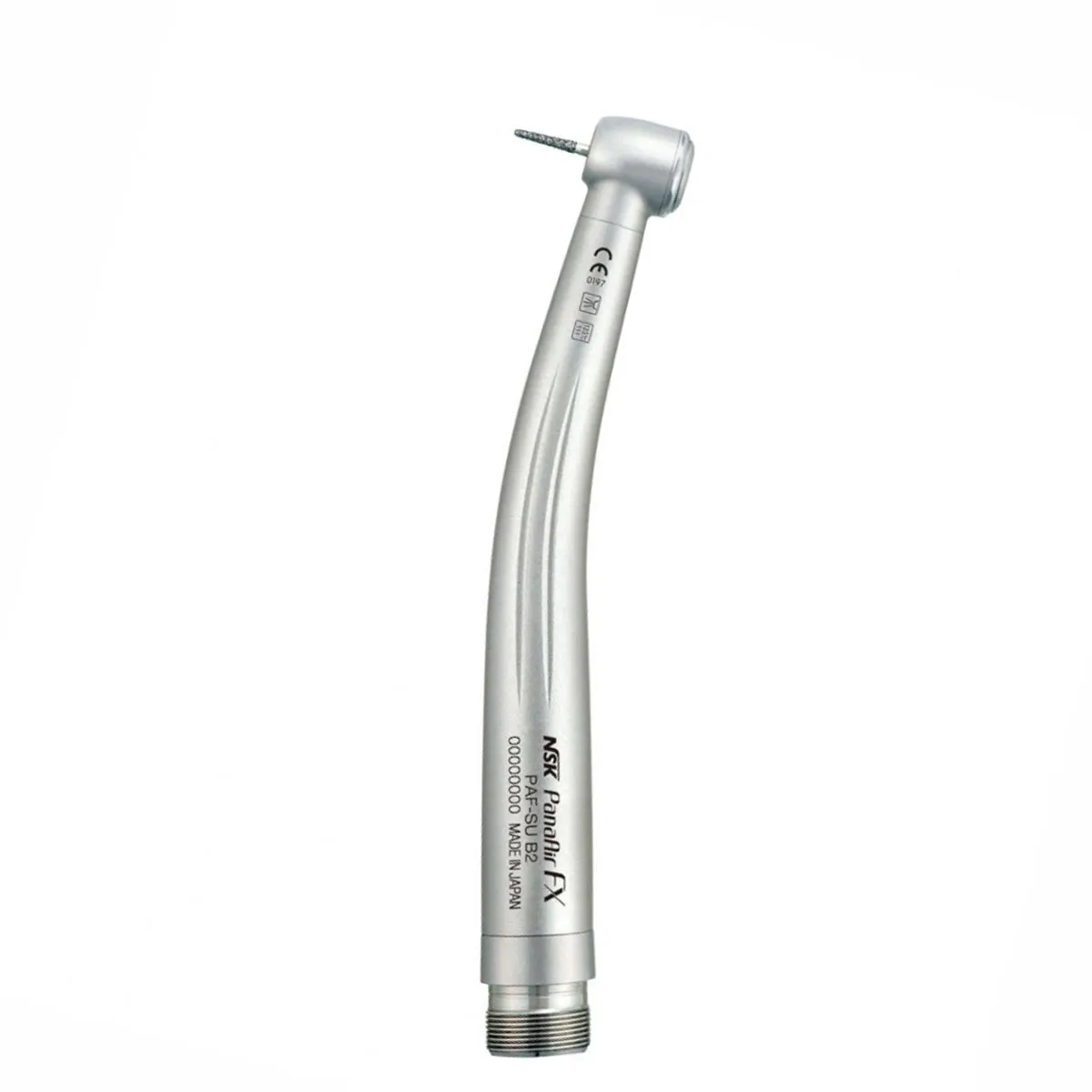

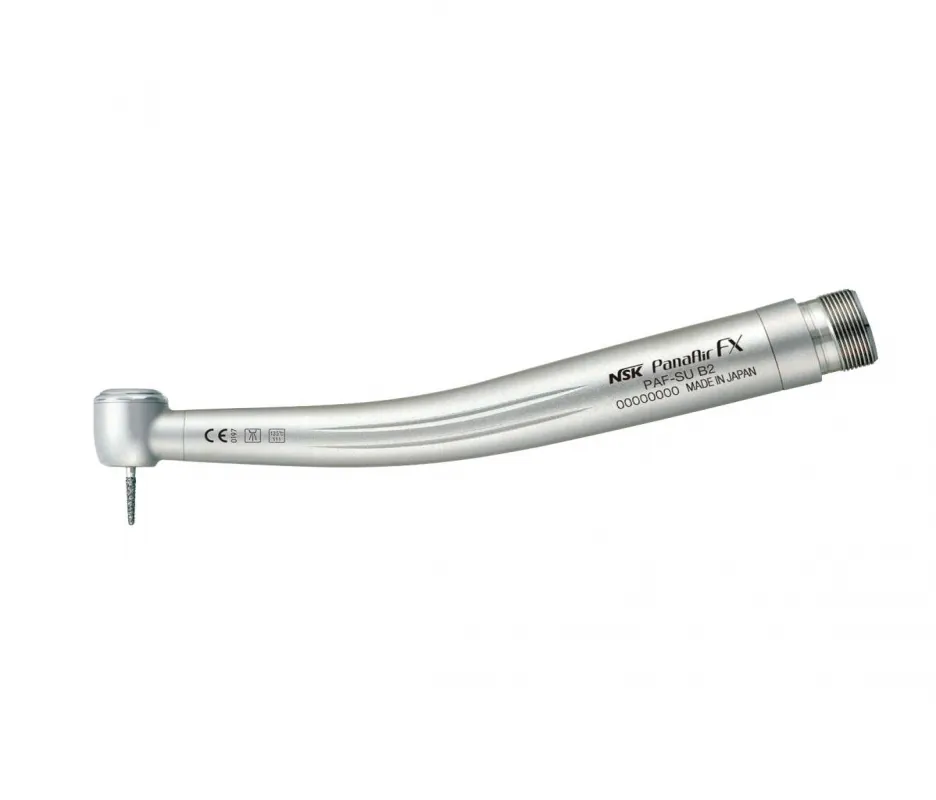

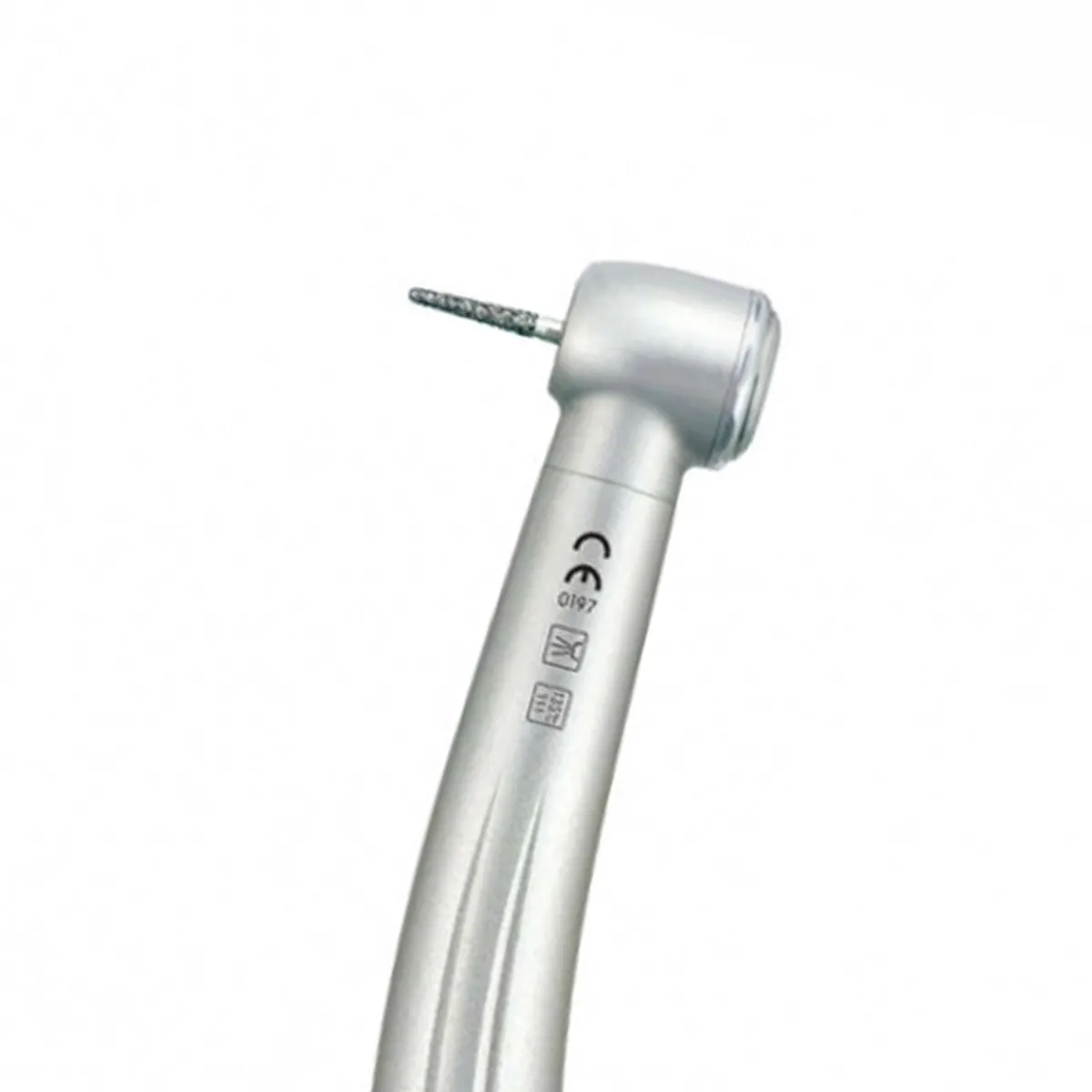

NSK Pana Air FX Standard Head Push Button Airotor (PAF-SU B2)

Features

• Powerful 20-watt motor for fast and precise treatments.
• Sleek design provides maximum visibility in the oral cavity.
• Push-button chuck for easy and quick bur changes.
• Suitable for various environmental conditions (temperature and humidity).
• Designed for durability and reliable performance.

Description

The NSK Pana Air HandPiece FX SU B2, a cutting-edge dental instrument that combines advanced features with ergonomic design to provide exceptional performance and precision. Designed for dental professionals who prioritize efficiency and patient comfort, this handpiece offers a wide range of capabilities to enhance dental procedures. The rotation speed of the Pana Air HandPiece FX SU B2 ranges from 350,000 to 450,000 min-1, allowing dental practitioners to adjust the speed according to their specific treatment requirements. This versatility ensures optimal results and enables efficient completion of various dental procedures.
Equipped with a push-button chuck, the Pana Air HandPiece FX SU B2 allows for convenient and quick bur changes. The chucking length of 10.2mm provides a secure grip on the bur, minimizing the risk of slippage and ensuring stability during procedures. This enables precise and controlled movements, enhancing the accuracy of dental treatments.

The handpiece is compatible with ISO 1797-1 Ø1.59 – 1.60mm standard burs, which are widely used in dental applications. This compatibility allows dental professionals to use their preferred burs, ensuring familiarity and optimal performance in various procedures The Pana Air HandPiece FX SU B2 accommodates burs with a maximum length of 21mm and a maximum working part diameter of Ø2mm. This generous capacity enables dental practitioners to work with a wide range of burs, providing flexibility and versatility in treatment options.

To ensure consistent and reliable operation, the handpiece operates at a drive air pressure of 0.20 – 0.25MPa (2.0 – 2.5kgf/cm2). This range of air pressure guarantees optimal performance and reliable power delivery, facilitating efficient and comfortable dental procedures. The Pana Air HandPiece FX SU B2 features an air consumption rate of ≤55 NL/min (0.25MPa), minimizing the air supply needed while maintaining excellent performance. This efficient air consumption contributes to the overall smooth operation of the handpiece and enhances the patient’s comfort during treatment.

The Pana Air HandPiece FX SU B2 is designed for use in a temperature range of 0 – 40ºC (no condensation) and a humidity range of 30 – 75%. It can withstand temperatures ranging from -10 – 50 ºC and humidity levels of 10 – 85% during storage, with an atmospheric pressure of 500 – 1,060hPa. These specifications guarantee the handpiece’s durability and performance even in various environmental conditions.

Key Specifications

• Rotation Speed: 350,000 – 450,000 min-1
• Bur Type: ISO 1797-1 Ø1.59 – 1.60mm Standard Bur
• Chuck Type: Push Button Chuck
• Chucking Length: 10.2mm
• Max. Bur Length: 21mm
• Max. Working Part Diameter: Ø2mm
• Drive Air Pressure: 0.20 – 0.25MPa (2.0 – 2.5kgf/cm2)
• Air Consumption: ≤55 NL/min (0.25MPa)
• Water Pressure: 0.05 – 0.20MPa (0.5 – 2.0kgf/cm2)

Packaging

• 1 x Pana Air Airotor Handpiece

Direction to Use

Preparation:

• Ensure that the handpiece is clean and free from any debris or contaminants.
• Connect the handpiece to a suitable dental unit or air compressor.
• Confirm that the air pressure is within the recommended range of 0.20 – 0.25MPa (2.0 – 2.5kgf/cm2).
• Check that the water pressure is within the specified range of 0.05 – 0.20MPa (0.5 – 2.0kgf/cm2).

Bur Installation:

• Press the bur release button or activate the chuck mechanism to open the chuck.
• Insert the desired ISO 1797-1 Ø1.59 – 1.60mm standard bur into the chuck, ensuring it is securely held in place.
• Release the bur release button or deactivate the chuck mechanism to lock the bur in position.
• Verify that the bur is properly seated and does not wobble.

Adjusting Rotation Speed:

• Use the appropriate controls on the dental unit or air compressor to adjust the rotation speed within the range of 350,000 to 450,000 min-1.
• Select a rotation speed suitable for the specific dental procedure being performed.
• Ensure that the chosen rotation speed is appropriate for the type of bur being used.

Operating the Handpiece:

• Hold the handpiece in a comfortable and secure grip, ensuring proper control and maneuverability.
• Position the handpiece tip or working part at the desired location within the oral cavity.
• Activate the handpiece using the designated controls on the dental unit or foot pedal.
• Maintain steady and controlled movements while performing the dental procedure.
• Pay attention to the patient’s comfort and provide appropriate breaks or pauses when necessary.
